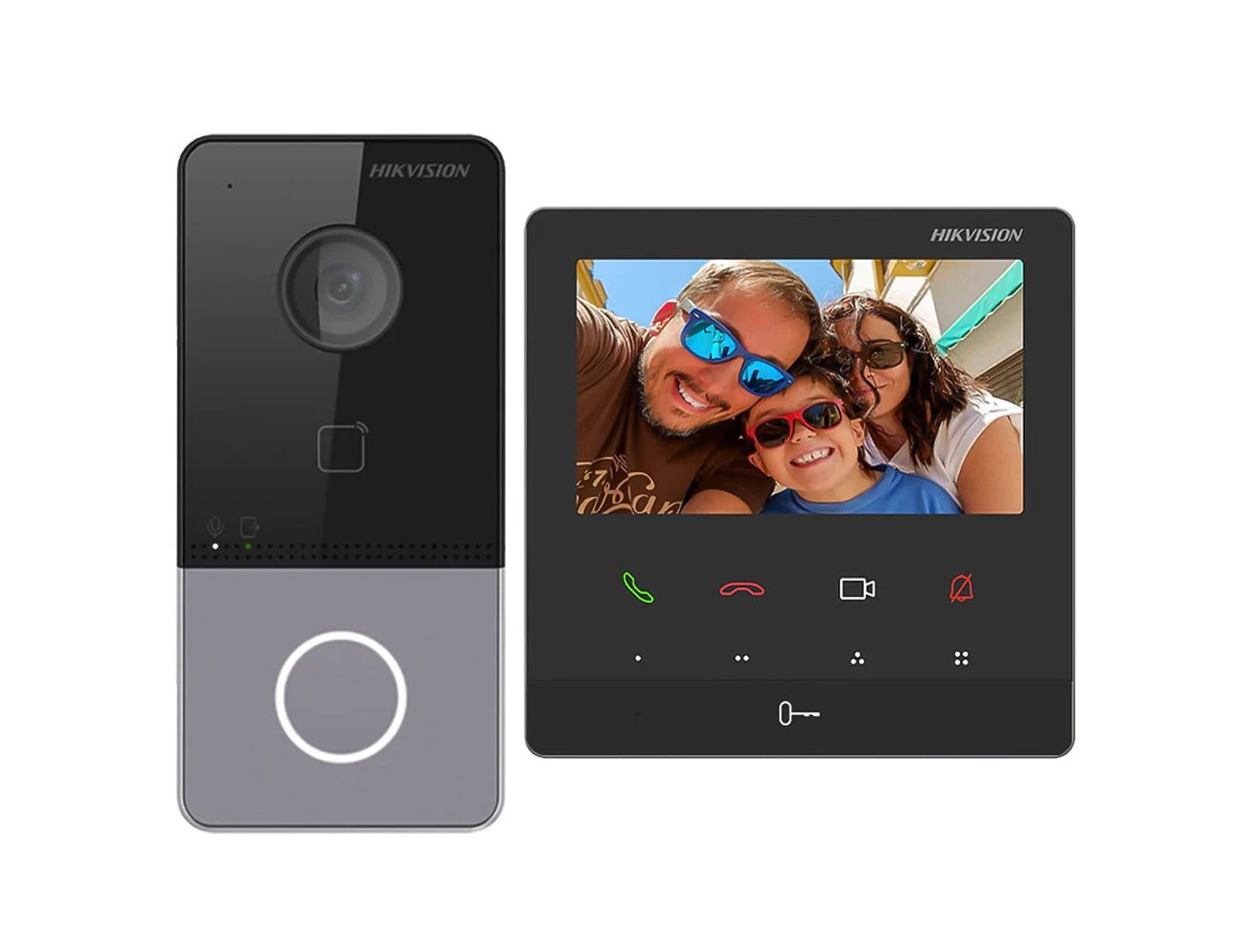

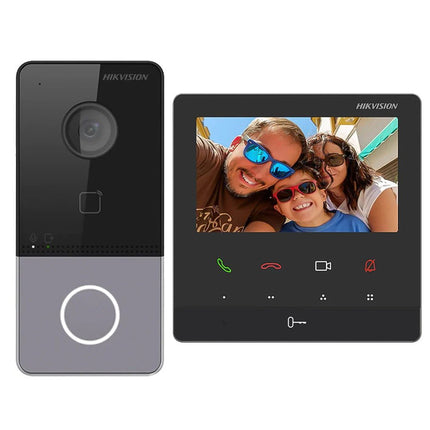

Description

Door station/System parameters

• Operation system Linux
• Processor Embeded high performance processor
• RAM256 MB
• ROM32 MB

Door station/Video parameters

• Supplement light iR light, up to 3 m
• Resolution

  Main stream: 1920 × 1080p



• Sub stream: 704 × 576p

• Lens2MP HD camera
• Wide dynamic range (WDR)120 dB
• Field of view Horizontal: 131°, Vertical: 78°
• Video Compression StandardH.264

Door station/Audio parameters

• Audio input1 built-in omnidirectional microphone
• Audio output1 built-in loudspeaker
• Audio qualityNoise suppression and echo cancellation
• Volume adjustmentAdjustable
• Audio compression standardG.711 U
• Audio compression Rate64 Kbps

Door station/Capacity parameters

• User capacity2000
• Linked indoor station capacity16
• Card capacity10000

Door station/Network parameters

• Network protocol TCP/IP, RSTP

Door station/Device interfaces

• Network interface1 RJ-45, 10/100 Mbps self-adaptive
• RS-4851
• Alarm input4
• Lock control1 relay, Max. 30 VDC 2 A
• Exit button1
• Door contact input1
• TAMPER1

Door station/General

• Button1 physical button(s)
• Power consumption＜ 10 W
• Working temperature-40 °C to 55 °C(-40 °F to 131 °F)
• Working humidity10% to 95% (no-condensing)
• Dimension138 mm × 65 mm × 27 mm (5.4" × 2.6" × 1.1")
• Installation Surface mounting
• Protection levelIP65
• Indicator2
• Application environment Outdoor
• Power supply

  IEEE802.3af, standard PoE

  12 VDC

• Weight Net weight: 0.190 kg； Gross weight: 0.414 kg

Indoor station/System parameters

• Operation system Embedded Linux operation system
• RAM128 MB
• ROM16 MB
• Processor Embedded processor

Indoor station/Display parameters

• Display resolution480 × 272
• Operation method Capacitive touch screen with 9 touch buttons
• Screen size4.3-inch colorful TFT screen
• Type Colorful TFT screen

Indoor station/Video parameter

• Video compression standard/
• Resolution/
• Lens/
• Wide dynamic range (WDR)/
• FOV/

Indoor station/Audio parameters

• Audio input Built-in omnidirectional microphone
• Audio output Built-in loudspeaker
• Audio qualityNoise suppression and echo cancellation
• Audio compression standardG.711 U, G.711 A
• Audio compression bitrate64 Kps
• Volume adjustment Adjustable

Indoor station/Capacity parameters

• Notice capacity200
• Linked indoor extensions capacity16

Indoor station/Network parameters

• Network protocol TCP/IP, SIP, RTSP
• Wi-Fi Wi-Fi 802.11 b/g/n, 2.4 GHz

Indoor station/Device interfaces

• Network interface1 RJ-45 10/100 Mbps self-adaptive

Indoor station/General

• Button9 physical button
• Power consumption≤ 4 W
• Power supplyIEEE802.3af, Standard PoE,12 VDC
• Working temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working humidity10% to 95% (no-condensing)
• Dimension (L x W x H)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
• Dimension (W × H × D)120 mm × 120 mm × 21 mm (4.7" × 4.7" × 0.83")
• InstallationWall mounting, table mounting
• Application environmentIndoor
• Protective level/
• WeightWith package: 336.6 g Without package: 197.8 g
• LanguageEnglish, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian Danish, Slovenian, Slovak, Swedish, Finnish, Traditional Chinese, Mongolian, Hebrew, Kazakh, Uzbek

Specifications

• Weight: 414 g
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
