Intercom

SD7 is a wireless mobile smart screen which has built-in 4600mAh rechargeable lithium battery. It supports access to EZVIZ video doorphone, doorbells, peepholes, DIY locks , cameras and other devices, supports real-time preview, video playback, two-way voice calls. It can be wall-mounted, table-placed , and used in scenarios flexible. This product mainly used in apartments, communities, villas, self-built houses. All-in-one touch screen: You can connect the screen to an EZVIZ doorbell like HP3/DB2/CP3/EP3X via WiFi and then manage your door intercom system. For example, you can respond to visitors and open/close door. When a visitor knocks on the door, you know who is outside. Wireless installation: This smart 7-inch color screen is 100% wireless and has a rechargeable 4600mAh lithium battery. You can connect the screen to other EZVIZ devices via 2.4GHz WiFi. Up to 30 EZVIZ devices: This SD7 display supports access to doorbells, peepholes, cameras, DIY locks and other devices. More than 10 SD7 screens can be connected together and up to 30 other devices can be connected to SD7 at the same time. Versatile mounting methods: It can be mounted on a wall or placed on a table with the included stand, or you can just bring the screen with you to avoid missing important images. Access EZVIZ App: Add your smart SD7 screen to EZVIZ App to manage and control your screen and other devices anytime and anywhere. For example, you can view real-time monitoring via the APP.

Read more less

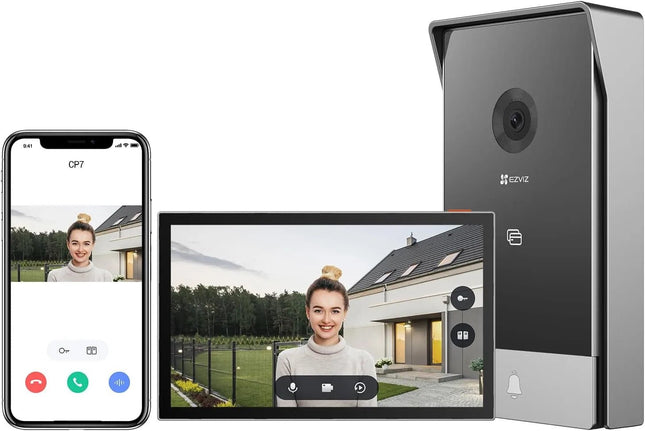

HP7 2K Smart Home Video Doorphone A connected choice for safer, smarter home access It’s time to upgrade your old intercom to be in The HP7 2K by ezviz delivers sharp, high-resolution video with 2K clarity, ensuring detailed and reliable surveillance. Designed for expert users, it offers advanced features for enhanced security monitoring, making it ideal for both residential and commercial applications. Its robust build and intuitive setup provide dependable performance and seamless integration into your security system. ternet connected, remotely accessible and app controllable. EZVIZ’s first-ever HP7 Video Doorphone maximizes the convenience for homeowners to view, talk, and grant access to visitors even if they’re not home. It also enhances home safety, as the 2-in-1 outdoor camera and phone helps record videos in 2K clarity and detect people with real-time mobile notifications.

Read more less

Door station/System parameters Operation system Linux Processor Embeded high performance processor RAM256 MB ROM32 MB Door station/Video parameters Supplement light iR light, up to 3 m Resolution Main stream: 1920 × 1080p   Sub stream: 704 × 576p Lens2MP HD camera Wide dynamic range (WDR)120 dB Field of view Horizontal: 131°, Vertical: 78° Video Compression StandardH.264 Door station/Audio parameters Audio input1 built-in omnidirectional microphone Audio output1 built-in loudspeaker Audio qualityNoise suppression and echo cancellation Volume adjustmentAdjustable Audio compression standardG.711 U Audio compression Rate64 Kbps Door station/Capacity parameters User capacity2000 Linked indoor station capacity16 Card capacity10000 Door station/Network parameters Network protocol TCP/IP, RSTP Door station/Device interfaces Network interface1 RJ-45, 10/100 Mbps self-adaptive RS-4851 Alarm input4 Lock control1 relay, Max. 30 VDC 2 A Exit button1 Door contact input1 TAMPER1 Door station/General Button1 physical button(s) Power consumption＜ 10 W Working temperature-40 °C to 55 °C(-40 °F to 131 °F) Working humidity10% to 95% (no-condensing) Dimension138 mm × 65 mm × 27 mm (5.4" × 2.6" × 1.1") Installation Surface mounting Protection levelIP65 Indicator2 Application environment Outdoor Power supply IEEE802.3af, standard PoE 12 VDC Weight Net weight: 0.190 kg； Gross weight: 0.414 kg Indoor station/System parameters Operation system Embedded Linux operation system RAM128 MB ROM16 MB Processor Embedded processor Indoor station/Display parameters Display resolution480 × 272 Operation method Capacitive touch screen with 9 touch buttons Screen size4.3-inch colorful TFT screen Type Colorful TFT screen Indoor station/Video parameter Video compression standard/ Resolution/ Lens/ Wide dynamic range (WDR)/ FOV/ Indoor station/Audio parameters Audio input Built-in omnidirectional microphone Audio output Built-in loudspeaker Audio qualityNoise suppression and echo cancellation Audio compression standardG.711 U, G.711 A Audio compression bitrate64 Kps Volume adjustment Adjustable Indoor station/Capacity parameters Notice capacity200 Linked indoor extensions capacity16 Indoor station/Network parameters Network protocol TCP/IP, SIP, RTSP Wi-Fi Wi-Fi 802.11 b/g/n, 2.4 GHz Indoor station/Device interfaces Network interface1 RJ-45 10/100 Mbps self-adaptive Indoor station/General Button9 physical button Power consumption≤ 4 W Power supplyIEEE802.3af, Standard PoE,12 VDC Working temperature-10 °C to 50 °C (14 °F to 122 °F) Working humidity10% to 95% (no-condensing) Dimension (L x W x H)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6") Dimension (W × H × D)120 mm × 120 mm × 21 mm (4.7" × 4.7" × 0.83") InstallationWall mounting, table mounting Application environmentIndoor Protective level/ WeightWith package: 336.6 g Without package: 197.8 g LanguageEnglish, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian Danish, Slovenian, Slovak, Swedish, Finnish, Traditional Chinese, Mongolian, Hebrew, Kazakh, Uzbek

Read more less

System parameters ProcessorEmbedded MCU Processor Operation system Embedded Linux Operation System Display parameters Display Resolution1024 × 600 Display Screen7-inch colorful TFT screen Audio parameters Audio Compression Rate64 Kbps Audio Compression StandardG.711 U Audio Input Built-in omnidirectional microphone Audio OutputBuilt-in loudspeaker Audio QualityNoise suppression and echo cancellation Network parameters Ethernet10/100 Mbps Self-Adaptive Ethernet Network protocol TCP/IP, RTSP Device interfaces I/O input4 I/O output2 General Power supply12 VDC/PoE ( IEEE 802.3af) Power consumption≤10 W Working temperature-40° C to +60° C (-40° F to 140° F) Working humidity10% to 95% Dimension (L x W x D)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6") Weight 683 g (with packaging) 355 g (without packaging) IP protection levelIP65 Memory128 MB Dimensions(L × W × H)98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")

Read more less

Door station/System parameters Operation system Embedded Linux operation system Flash32 MB RAM128 MB Door station/Video parameters Camera2MP HD camera Night vision Low illumination IR supplement mode:3 m Backlight compensation Support Digital noise reduction Support WDR True WDR Field of view Horizontal: 129° Vertical: 75° Video Compression StandardH.264 Stream Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps Motion detection Support Flash-avoid frequency50 Hz, 60 Hz Door station/Audio parameters Audio input Built-in omnidirectional microphone Audio output Built-in loudspeaker Audio quality Noise suppression and echo cancellation Audio compression standardG.711 U Audio compression Rate64 Kbps Audio intercom Two-way audio communication Door station/Network parameters Network protocol TCP/IP, RSTP Wired network10/100 Mbps Ethernet Door station/Device interfaces RS-4851 Alarm input4 Debugging port1 Grounding1 TAMPER switch1 Door station/General Power consumption＜ 10 W Working temperature-40° C to 53° C(-40° F to 127.4° F) Working humidity10% to 95% Dimension138 mm × 65 mm × 27 mm Installation Surface mounting Protection levelIP65 Indicator2 Power supply IEEE802.3af, standard PoE 12 VDC Indoor station/System parameters Operation system Embedded Linux operation system Memory128 MB Flash32 MB Indoor station/Display parameters Display screen7-inch colorful TFT screen Display resolution1024 × 600 Operation method Capacitive touch screen Indoor station/Audio parameters Audio input Built-in omnidirectional microphone Audio output Built-in loudspeaker Audio quality Noise suppression and echo cancellation Audio compression standardG.711 U Audio compression Rate64 Kbps Indoor station/Network parameters Wired network10/100 Mbps self-adaptive Wireless network Wi-Fi 802.11 b/g/n Protocol TCP/IP, SIP, RTSP RS-4851 RJ-45 10/100 Mbps self-adaptive Indoor station/Device interfaces RS-4851 Alarm input8-ch alarm inputs Relay output2 TF card Max to 32 G, SD 2.0 or lower version Indoor station/General Power consumption≤ 6 W Working temperature-10 °C to 55 °C (14 °F to 131 °F) Working humidity10% to 90% Dimension (L x W x H)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")

Read more less
