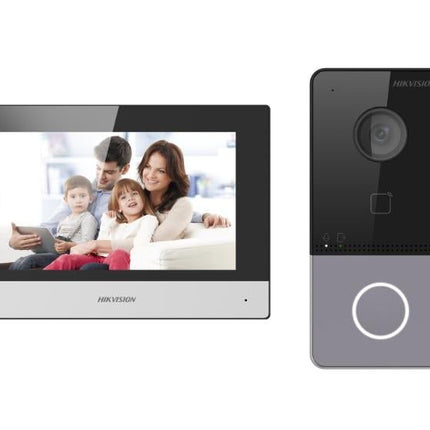

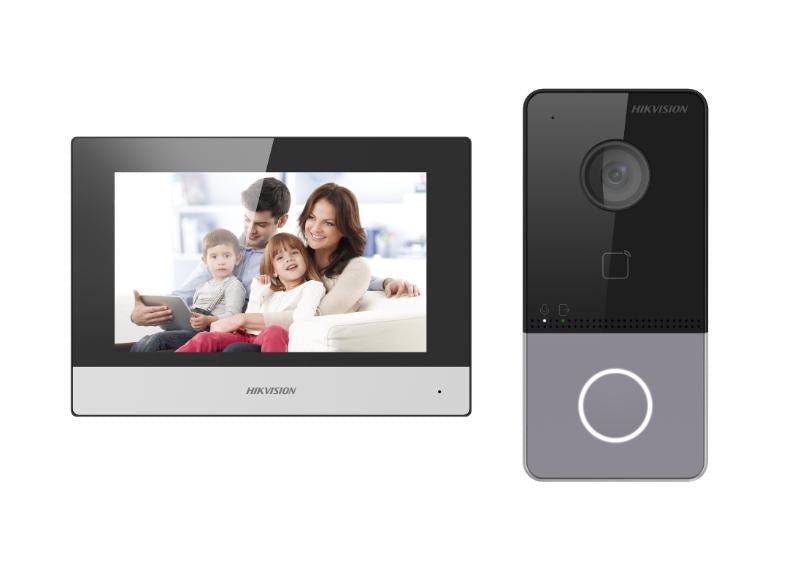

Description

Door station/System parameters

• Operation system Embedded Linux operation system
• Flash32 MB
• RAM128 MB

Door station/Video parameters

• Camera2MP HD camera
• Night vision Low illumination IR supplement mode:3 m
• Backlight compensation Support
• Digital noise reduction Support
• WDR True WDR
• Field of view Horizontal: 129° Vertical: 75°
• Video Compression StandardH.264
• Stream Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
• Motion detection Support
• Flash-avoid frequency50 Hz, 60 Hz

Door station/Audio parameters

• Audio input Built-in omnidirectional microphone
• Audio output Built-in loudspeaker
• Audio quality Noise suppression and echo cancellation
• Audio compression standardG.711 U
• Audio compression Rate64 Kbps
• Audio intercom Two-way audio communication

Door station/Network parameters

• Network protocol TCP/IP, RSTP
• Wired network10/100 Mbps Ethernet

Door station/Device interfaces

• RS-4851
• Alarm input4
• Debugging port1
• Grounding1
• TAMPER switch1

Door station/General

• Power consumption＜ 10 W
• Working temperature-40° C to 53° C(-40° F to 127.4° F)
• Working humidity10% to 95%
• Dimension138 mm × 65 mm × 27 mm
• Installation Surface mounting
• Protection levelIP65
• Indicator2
• Power supply

  IEEE802.3af, standard PoE

  12 VDC

Indoor station/System parameters

• Operation system Embedded Linux operation system
• Memory128 MB
• Flash32 MB

Indoor station/Display parameters

• Display screen7-inch colorful TFT screen
• Display resolution1024 × 600
• Operation method Capacitive touch screen

Indoor station/Audio parameters

• Audio input Built-in omnidirectional microphone
• Audio output Built-in loudspeaker
• Audio quality Noise suppression and echo cancellation
• Audio compression standardG.711 U
• Audio compression Rate64 Kbps

Indoor station/Network parameters

• Wired network10/100 Mbps self-adaptive
• Wireless network Wi-Fi 802.11 b/g/n
• Protocol TCP/IP, SIP, RTSP
• RS-4851 RJ-45 10/100 Mbps self-adaptive

Indoor station/Device interfaces

• RS-4851
• Alarm input8-ch alarm inputs
• Relay output2
• TF card Max to 32 G, SD 2.0 or lower version

Indoor station/General

• Power consumption≤ 6 W
• Working temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working humidity10% to 90%
• Dimension (L x W x H)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")

Specifications

• Weight: 683 g
• Usage: Indoor & outdoor
